ISUZU BY GOH BROTHERS
LOOKING FOR A NEW TRUCK FOR YOUR BUSINESS?
Fill in the form below to register your interest and a Isuzu representative will contact you soon

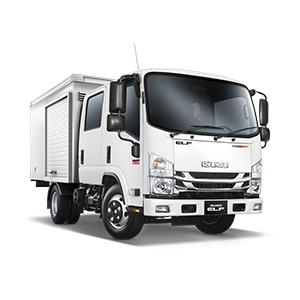

ELF NLR/NMR/NPR CREW Series
Product Details
PERFORMANCE
USEFUL FEATURES
90 Degrees door opening
Excellent Ingress and Egress even in tight door opening condition
Minimum turning radius
Gross Vehicle Weight (GVW) 5.5 tonnes*
(*applicable for NMR77UFHW)
(*applicable for NMR77UFHW)
Side steps for rear-passengers
INTERIOR
Narrow cabin makes driving manoeuvrability in tight places easier
Wide-angle mirror offers extra visibility of surroundings and minimising blind-spots
Excellent all-round visibility
Easily accessible maintenance and inspection hatch
Spacious and comfortable cabin to accommodate 7 passengers (applicable to NPR Crew)
SAFETY
ASR traction control helps prevent wheelspins and improves vehicle stability when driving on slippery roads
EBD is a function that uses the ABS to distribute braking force between the front and rear wheels to compensate for changes in the load conditions or any shift of load due to acceleration/deceleration, thus preventing premature locking of the rear wheels
*SRS airbag system and seat belt with prentesioner are activated in the event of a frontal collision, mitigating impact to the head and chest
*Applicable for driver only
*Applicable for driver only
ELF Crew seating capacity and GVW chart
BODY APPLICATION
SPECIFICATIONS
|
|
|
|||||
| MODEL CODE | NLR77UFEW / UHEW | NMR77UFHW | NPR75UKHW | ||||
| e-Brochure |  |
||||||
| Drive System | 4 x 2 | ||||||
| ENGINE | |||||||
| Model | 4JH1-TC | 4HK1-TC | |||||
| Type | 4-Cylinder In-line, 4-Cycle, Water-Cooled | ||||||
| OHV, Turbo with Intercooler | OHC, Turbo with Intercooler | ||||||
| Displacement | cc | 2,999 | 5,193 | ||||
| Maximum Output (Gross) | kW (PS) @ rpm | 81 (110) @ 3,200 | 110 (150) @ 2,600 | ||||
| Maximum Torque | Nm (kgfm) @ rpm | 230 (23.5) @ 1,400-3,200 | 404 (41) @ 1,600-2,600 | ||||
| Emission Level | Euro 2 | ||||||
| Fuel System | Commonrail Direct Injection | ||||||
| TRANSMISSION | |||||||
| Model / No. of Speed | MSB-5S / Manual 5-Speed | MYY-6S / Manual 6-Speed | |||||
| Gear Ratio | 1st | 5.016 | 5.979 | ||||
| 2nd | 2.672 | 3.434 | |||||
| 3rd | 1.585 | 1.862 | |||||
| 4th | 1.000 | 1.297 | |||||
| 5th | 0.770 | 1.000 | |||||
| 6th | - | 0.759 | |||||
| Reverse | 4.783 | 5.701 | |||||
| Final | 5.857 | 5.125 | |||||
| WEIGHT & CAPACITIES | |||||||
| Gross Vehicle Weight | kg | 4,100 | 5,500 | 7,500 | |||
| Curb Weight | kg | 2,045 / 2,070 | 2,110 | 2,750 | |||
| Front | kg | 1,380 / 1,385 | 1,380 | 1,795 | |||
| Rear | kg | 665 / 685 | 730 | 955 | |||
| Fuel Tank Capacity | l | 63 / 75 | 63 | 100 | |||
| AXLE | |||||||
| Front | Type | Reverse Elliot, I-Beam | |||||
| Front Axle Capacity (Design) | kg | 2,900 | 3,100 | ||||
| Rear | Type | Banjo, Full Floating | |||||
| Rear Axle Capacity (Design) | kg | 3,600 | 5,000 | 6,000 | |||
| SUSPENSION SYSTEM | |||||||
| Suspension | Front | Semi Elliptical Alloy Steel Leaf Spring with Double Acting Telescopic Shock Absorber, Stabiliser Bar | Semi Elliptical Alloy Steel Leaf Spring with Double Acting Telescopic Shock Absorber | ||||
| Rear | Semi Elliptical Alloy Steel Leaf Spring with Double Acting Telescopic Shock Absorber | ||||||
| TYRES & WHEELS | |||||||
| Tyres | 205 / 85R16 | 215 / 75R17.5 | |||||
| Wheels | 16 x 5.5J-85 | 16 x 5.5J-116.5 | 17.5 x 6.00-127 | ||||
| BRAKES | |||||||
| Service | Type | Hydraulic system with auto adjusting front and rear drum brakes | |||||
| Dual circuit, vacuum assistance and Anti-Lock Brake System (ABS) with Electronic Brake force Distribution (EBD) | |||||||
| Parking Brake Type | Transmission Mounted, Mechanical Operated Internal Expanding | ||||||
| Auxiliary | Exhaust Brake | ||||||
| STEERING | |||||||
| Steering System | Power Assist, Recirculating Ball Type | ||||||
| Min. Turning Radius | m | 6.0 / 7.1 | 6.0 | 7.1 | |||
| ELECTRICAL | |||||||
| Battery | 12V x 2 | ||||||
| Alternator | 12V - 60A | 24V - 90A | |||||
| OTHER SAFETY | |||||||
| Supplemental Restraint System (SRS) | Equipped with Pre-tensioner Seatbelt | ||||||
| Anti-Slip Regulator (ASR) | Equipped with on/off function | ||||||
| DIMENSION | |||||||
| Overall Length | mm | 5,250 / 6,025 | 5,250 | 6,635 | |||
| Overall Width | mm | 1,815 | 1,860 | 2,125 | |||
| Overall Height | mm | 2,172 / 2,175 | 2,290 | 2,275 | |||
| Wheelbase | mm | 2,750 / 3,345 | 2,750 | 3,815 | |||
| Front Overhang | mm | 1,110 | |||||
| Rear Overhang | mm | 1,390 / 1,570 | 1,390 | 1,710 | |||
| Front Tread | mm | 1,475 | 1,680 | ||||
| Rear Tread | mm | 1,395 | 1,425 | 1,650 | |||
| Cab to Axle | mm | 1,186 / 1,781 | 1,186 | 2,251 | |||
